Battery packaging
Batteries and dangerous goods
We take care of the process, from packaging idea to certified solution

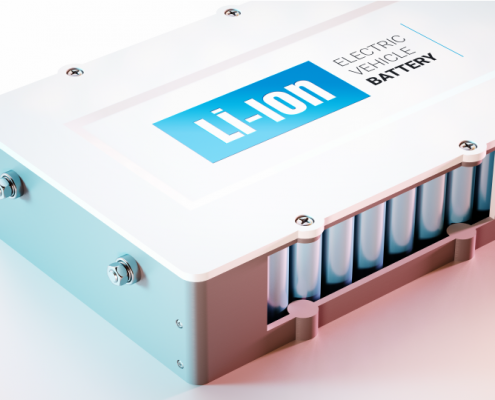

Batteries and especially vehicle batteries such as Lithium-Ion batteries are often classified as dangerous goods. That means that the packaging has to be UN-certified. Factors that determine the packaging is the state of the battery – if it is a prototype, a tested series battery, a waste battery packaged for disposal or recycling, or if it is a damaged or defective battery. Weight is also a factor and is often substantial. The third factor is how the battery will be transported. There are different regulations for whether a battery should be transported via road, by train, via sea or via air.
Wellplast AB develops solutions for packing everything from small battery cells to heavy load truck-batteries and we also assist all the way through the certifying process.
Load Carriers for
large size battery packs
Heavy duty load carrier with optimised pallet box and interior fitment adapted to the specific battery. Often used for hybrid vehicle batteries and large size batteries for trucks and buses. Durable and designed for return transport systems.
Automation trays for battery cells
Thermoformed tray designed for the specific battery cells and adapted to load carrier and automation system. Available in robust longlife or light weight oneway material. Often used for robot picking.
Pallet tray for battery modules
Thermoformed twinsheet tray designed for the specific battery module and the chosen load carrier. A very durable solution suitable for transport, storage and automation. Often used for robot picking.
Download information
Contact us for more information or samples
Wellplast AB
Turistgatan 2
SE-265 39 Åstorp, Sweden
Phone: +46 431 431 444
Fax: +46 431 431 555
info@wellplast.se or use the form
How can we help you?
Material
Hello
PPC Plastic pallet concept

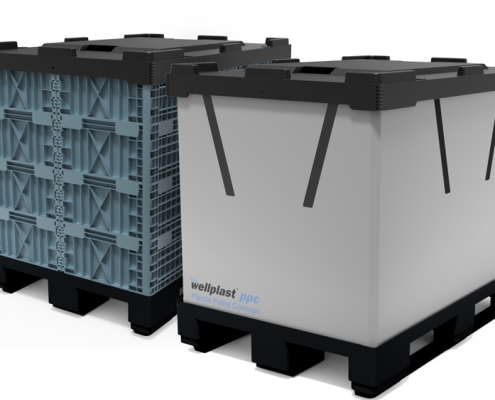

Wellplast® PPC – Plastic Pallet Concept
The future of plastic pallet return systems
Wellplast® PPC – Plastic Pallet Concept
The Wellplast® PPC plastic pallet system is developed for return systems with all parts in a robust design. It is unique in several ways. It is a flexible system with a robust pallet and lid that can be combined with pallet frames for heavy loads and with sleeves for lighter loads. The innovative design of the pallet frames substantially reduces time for frame handling and improves ergonomics for workers.
The foldable sleeves are light weight and easy to handle. The V-shaped hatch makes it easy to reach down into the pallet and has a unique locking system without unreliable moving parts. The pallet and lid can also be used for other type of goods, such as boxes of different kinds.
The system is secured by using traditional strapping. Logistically the frames and sleeves are easily folded and secured and take up very little space.
PPC – Pallet with pallet frames/collars and lid
Measurements: | 1200*800mm (frame height 200mm) |
Stacking load: | static 3000kg dynamic: 2000kg |
Pallet racks: | Approved |
Packing: | Frames flat packed |
Material: | Copolymer polypropen |
Securing/locking: | Straps |
PPC – Pallet with sleeve and lid
Measurements: | 1200*800mm (sleeve high: 972mm low: 574mm) |
Stacking load: | static 1400kg dynamic 700kg |
Pallet racks: | Approved |
Packing: | Sleeve flat packed |
Material: | Copolymer polypropen |
Securing/locking: | Straps |
More products and packaging
Wellplast AB
Turistgatan 2
SE-265 39 Åstorp, Sweden
Phone: +46 431 431 444
Fax: +46 431 431 555
info@wellplast.se or use the form

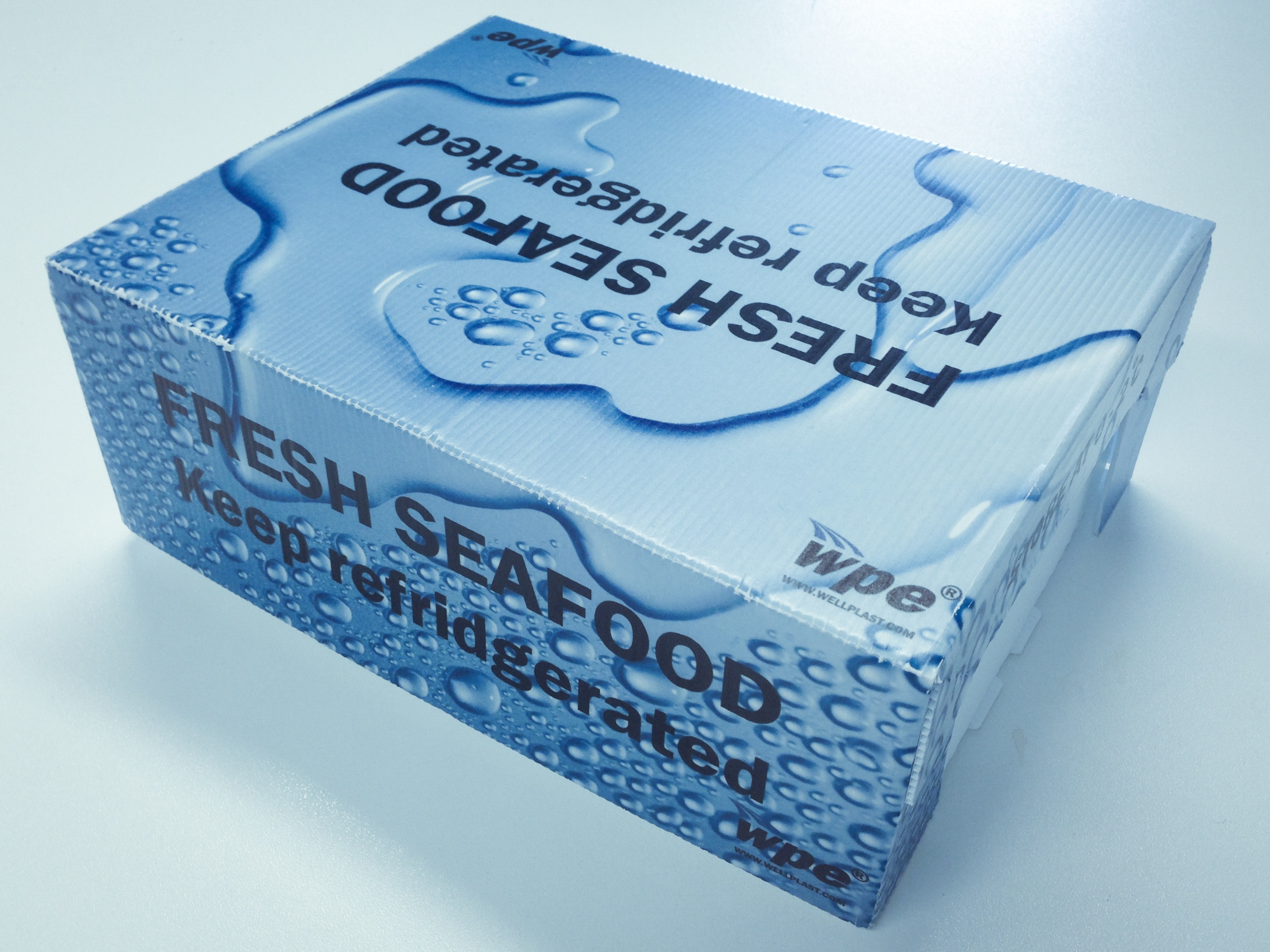

Seafood boxes
Boxes for seafood
Wellplast® Seafood packaging
The new generation of seafood packaging. The environmental option to EPS durable and logistically efficient.
Specifications Seafood boxes
Name | Name kg |
L*W*H (mm) |
Folding | No./pallet |
Volume (liter) |
Seafood 3kg drained | 390*265*100 | 4-point glue | 900 | 7,5 | |
Seafood 5kg drained | 390*265*130 | 4-point glue | 900 | 10 | |
Seafood 10kg drained | 390*300*150 | 4-point glue | 600 | 25 | |
Seafood 15kg drained | 590*390*170 | Easy manual | 300 | 38 | |
Seafood 20kg drained | 790*390*170 | Easy manual | 250 | 50 | |
Seafood 5kg leak proof | 390*265*130 | Easy manual | 900 | 16,0 | |
Seafood 10kg leak proof | 390*300*150 | Easy manual | 600 | 25 | |
Seafood 15kg leak proof | 590*390*150 | Easy manual | 300 | 38 | |
Seafood 20kg leak proof | 790*390*150 | Easy manual | 250 | 50 | |
Seafood tray 1/2 pallet leak proof | 800*600*150 | Tape | 300 | 48 | |
Seafood tray pallet leak proof | 1200*800*150 | Tape | 300 | 96 | |
Norway Lobster box small | 400*400*200 | Easy manual | 100 | 32 | |
Norway Lobster box medium | 400*400*250 | Easy manual | 100 | 40 | |
Norway Lobster box medium | 400*400*300 | Easy manual | 100 | 48 | |
Packaging: | Hygiene packaging | ||||
Print: | Screen, Flexo, Offset | ||||
Material: | 100% virgin polypropylene | ||||
Recycling: | 100% recyclable as PP (5) | ||||
Wellplast AB
Turistgatan 2
SE-265 39 Åstorp
Telefon: +46 431 431 444
Fax: +46 431 431 555
info@wellplast.se or use the form

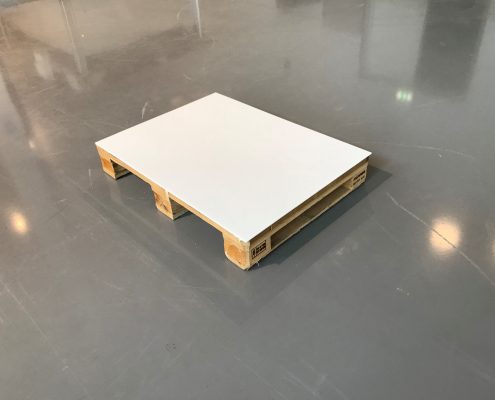

Interlayers
Interlayers, top sheets och bottom sheets
Wellplast® Interlayers, top sheets och bottom sheets
Pallet interlayers are in most cases delivered in measurements adjusted to standard pallets with or without pallet collars. Other measurements are available on customers’ requests. Can be delivered with cut corners to facilitate the lifting of them out of the collars. Pipe direction is optional.
Edge sealing also possible.
Specifications
Name: | Measurements | Qty. per pallet (EUR-measurement) |
Interlayer whole pallet | 1200×800 mm | 335 pcs./pallet |
Interlayer 1/2 pallet | 800×600 mm | 670 pcs./pallet |
Interlayer whole pallet with frame | 1140×740 mm | 335 pcs./pallet |
Interlayer 1/2 pallet with frame | 740×540 mm | 670 pcs./pallet |
Interlayer V-Emb L-pallet with frame | 1160×760 mm | 335 pcs./pallet |
Interlayer V-Emb K-pallet with frame | 760×560 mm | 670 pcs./pallet |
Interlayer with different size: | Max: 4000x1280mm
Min: No limitations |
335 pcs./pallet |
Delivery: | 1,2 m high stackable pallet | |
Packaging: | Pallet, corner protection, top sheets and stretch wrap | |
Print: | Tampo, Screen, Flexo | |
Segment: | Automotive and engineering Construction Medical Foods | |
Options: | Sealed edges |
Wellplast AB
Turistgatan 2
SE-265 39 Åstorp
Telefon: +46 431 431 444
Fax: +46 431 431 555
info@wellplast.se or use the form

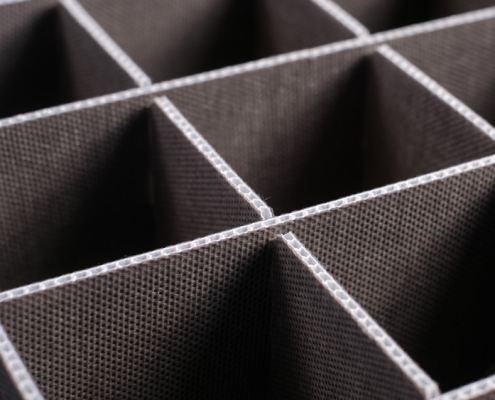

Grids / Raster
Grids / Raster
Wellplast® Grids
Grids are used to separate products from each other during tansportation and at the same time to have a simple pack-procedure. Our interior fitments have a high stackable strength and are water-resistable. It gives possibility to pack clean and pack in clean environment. The grids are designed to fit the product. Outer measurement is adjusted to outer package that can be either a pallet or smaller boxes. Grids are to be assembled manually. We can also offer assembling.
Specifications Grids (Fefco 0934)
Specifications | Grids |
Box interior fitments | Max.: LxWxH: 1670x1670x1200 mm |
Min.: No limitations | |
Packaging: | Pallet, corner protection, top sheets and stretch wrap |
Print: | Tampo, Screen, Flexo |
Segments: | Automotive and engineering Construction Medical Foods |
Note: | Can be delivered assembled and folded |
Materials
Wellplast AB
Turistgatan 2
SE-265 39 Åstorp
Telefon: +46 431 431 444
Fax: +46 431 431 555
info@wellplast.se or use the form

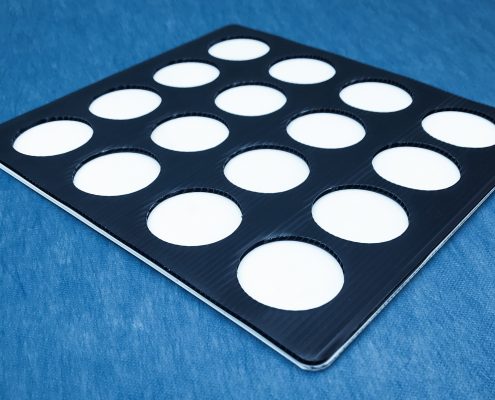

Fixating spacers
Fixating spacers / Interlayers
Wellplast® Fixating spacers / interlayers
Fixating spacers are used to fixate details in a simple and proper way. Details are holded separately by a protective meaning. Sheets help to save time and make it easier during packing and unpacking. For example, you can lift the whole sheet with products. Fixating sheets are often in use in automatic processes with robots doing packing and unpacking.
Specifications
Specifications | Fixating spacers |
Fixating sheet whole pallet | 1200×800 mm |
Fixating sheet 1/2 pallet | 800×600 mm |
Fixating sheet whole pallet with frame | 1140×740 mm |
Fixating sheet 1/2 pallet with frame | 740×540 mm |
Fixating sheet V-Emb L-pallet with frame | 1160×760 mm |
Fixating sheet V-Emb K-pallet with frame | 760×560 mm |
Fixating sheet with custom size | Max: 1200x800mm |
Delivery: | 1,2m high stackable pallet |
Packaging: | Pallet, corner protection, top sheets and stretch wrap |
Folding: | Sheets for whole pallet are delivered folded, others folds manually |
Print: | Tampo, Screen, Flexo |
Segments: | Automotive and engineering Construction Medical Foods |
Note: | Can be delivered welded or glued |
Materials
Wellplast AB
Turistgatan 2
SE-265 39 Åstorp
Telefon: +46 431 431 444
Fax: +46 431 431 555
info@wellplast.se or use the form

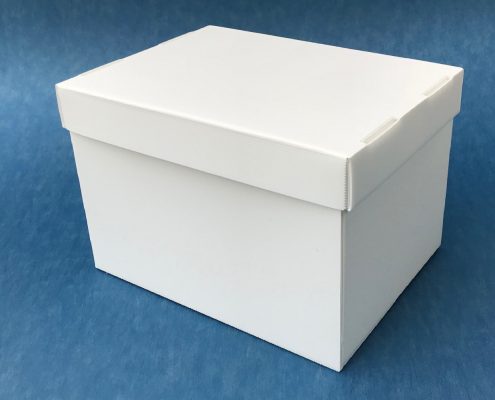

Boxes with separate lid
Boxes with separate lid
Wellplast® Boxes with separate lid
Boxes with separate lock are available in several models. We have a great number of standard boxes but are flexible and adjust the boxes to the customer’s needs. The packages are delivered unfolded (flat) and are folded by hand or automatically when they arrive at the customer’s place.
Specifikationer Boxes with separate lid (Fefco 0300 m. fl.)
Specification: | Box with separate lid (Fefco 0300 etc.) |
Measurements: | Max: up to customer Min: up to customer |
Delivery volume: | Depends on construction and size |
Packaging: | Pallet, corner protection, top sheets and stretch wrap |
Folding: | Manually or automatically |
Print: | Tampo, Screen, Flexo |
Segment: | Automotive and engineering Construction Medical Foods |
Note: |
Contact us for more information or samples
Wellplast AB
Turistgatan 2
SE-265 39 Åstorp
Telefon: +46 431 431 444
Fax: +46 431 431 555
info@wellplast.se or use the form
How can we help you?
Materials

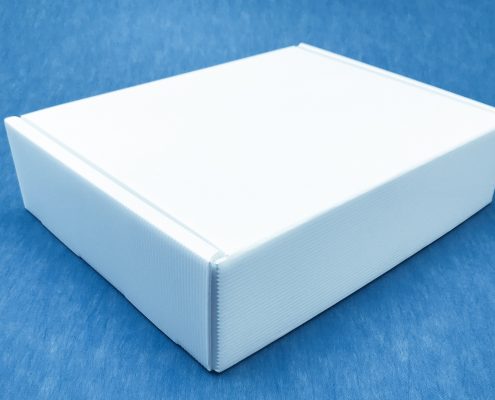

Boxes with integrated lid
Boxes with integrated lid
Wellplast® boxes with integrated lid
Boxes with integrated lid are available in several models. We have a great number of standard boxes but are flexible and adjust the boxes to the customer’s needs. The packages are delivered unfolded (flat) and are folded by hand or automatically when they arrive at the customer’s place.
Specifications
Specificatios: | Box with integrated lid (Fefco 0427 etc.) |
Measurements: | Max: up to customer Min: up to customer |
Delivery volume: | Depends on design and size |
Packaging: | Pallet, corner protections, top sheets and stretch wrap |
Folding: | Manually or automatically |
Print: | Tampo, Screen, Flexo |
Segment: | Automotive and engineering Construction Medical Foods |
Note: |
