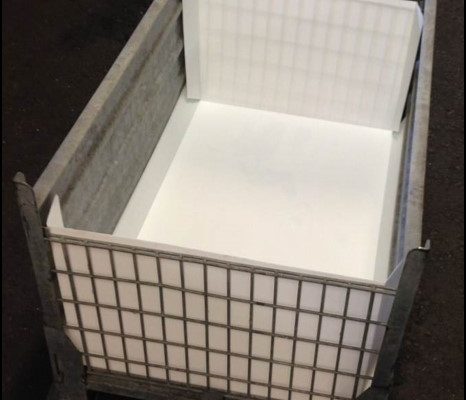

Palletainer insert

Palletainer insert for meat

Wellplast® Palletainer insert for meat

Meat is often transported for further processing in so-called palletainers. The palletainer is a collapsible metal cage in which you put in PE bags. Then fill them with up to 500kg of meat. Wellplast palletainer insert is put in the pallet box before the bag to prevent leakage. It is a fluid-tight construction and prevents leakage.

Specifications

Palletainer insert
Material: Wellplast®, White, approved for food contact
Measurements: Adapted to standard palletainer Fold long side 100mm fold short side 500mm
Packaging: Pallet, top sheet, stretch wrap
Design:  Liquidproof fold
Segments: Foods
Other:



Wellplast AB

Turistgatan 2
SE-265 39 Åstorp
Telefon: +46 431 431 444
Fax: +46 431 431 555
info@wellplast.se or use the form

Use the form and we will come back to you soon.

0 + 5 = ?

PPC Plastic pallet concept

Wellplast® PPC – Plastic Pallet Concept


The future of plastic pallet return systems

Wellplast® PPC – Plastic Pallet Concept

The Wellplast® PPC plastic pallet system is developed for return systems with all parts in a robust design. It is unique in several ways. It is a flexible system with a robust pallet and lid that can be combined with pallet frames for heavy loads and with sleeves for lighter loads. The innovative design of the pallet frames substantially reduces time for frame handling and improves ergonomics for workers.

The foldable sleeves are light weight and easy to handle. The V-shaped hatch makes it easy to reach down into the pallet and has a unique locking system without unreliable moving parts. The pallet and lid can also be used for other type of goods, such as boxes of different kinds.

The system is secured by using traditional strapping. Logistically the frames and sleeves are easily folded and secured and take up very little space.

  • Robust

    High quality designed for a long life in return systems

  • Strong

    Designed for heavy stacking loads

  • Flexible

    Pallet and lid can be combined with either pallet frame or sleeve

  • Efficient

    Time saving handling

  • Clean

    Non organic PP that does not emit dust and is easy to clean

  • Low environmental impact

    Long life cycle, low energy consumption when produced and 100% recyclable


Download information

PPC – Pallet with pallet frames/collars and lid

Measurements: 1200*800mm (frame height  200mm)
Stacking load: static 3000kg dynamic: 2000kg
Pallet racks: Approved
Packing: Frames flat packed
Material: Copolymer polypropen
Securing/locking: Straps

PPC – Pallet with sleeve and lid

Measurements: 1200*800mm (sleeve high: 972mm low: 574mm)
Stacking load: static 1400kg dynamic 700kg
Pallet racks: Approved
Packing: Sleeve flat packed
Material: Copolymer polypropen
Securing/locking: Straps

More products and packaging



Wellplast AB

Turistgatan 2
SE-265 39 Åstorp, Sweden
Phone: +46 431 431 444
Fax: +46 431 431 555
info@wellplast.se or use the form

Use the form and we will come back to you soon.

1 + 4 = ?

Seafood boxes

Boxes for seafood

Wellplast® Seafood packaging

The new generation of seafood packaging. The environmental option to EPS durable and logistically efficient.

Specifications Seafood boxes

Name Name kg
L*W*H (mm)
Folding No./pallet
Volume (liter)
  Seafood 3kg drained 390*265*100 4-point glue 900 7,5
Seafood 5kg drained 390*265*130 4-point glue 900 10
Seafood 10kg drained 390*300*150 4-point glue 600 25
Seafood 15kg drained 590*390*170 Easy manual 300 38
Seafood 20kg drained 790*390*170 Easy manual 250 50
Seafood 5kg leak proof 390*265*130 Easy manual 900 16,0
Seafood 10kg leak proof 390*300*150 Easy manual 600 25
Seafood 15kg leak proof 590*390*150 Easy manual 300 38
Seafood 20kg leak proof 790*390*150 Easy manual 250 50
Seafood tray 1/2 pallet leak proof 800*600*150 Tape 300 48
Seafood tray pallet leak proof 1200*800*150 Tape 300 96
Norway Lobster box small 400*400*200 Easy manual 100 32
Norway Lobster box medium 400*400*250 Easy manual 100 40
Norway Lobster box medium 400*400*300 Easy manual 100 48
Packaging: Hygiene packaging
Print: Screen, Flexo, Offset
Material: 100% virgin polypropylene
Recycling: 100% recyclable as PP (5)



Wellplast AB

Turistgatan 2
SE-265 39 Åstorp
Telefon: +46 431 431 444
Fax: +46 431 431 555
info@wellplast.se or use the form

Use the form and we will come back to you soon.

1 + 1 = ?

Interlayers

Interlayers, top sheets och bottom sheets

Wellplast® Interlayers, top sheets och bottom sheets

Pallet interlayers are in most cases delivered in measurements adjusted to standard pallets with or without pallet collars. Other measurements are available on customers’ requests. Can be delivered with cut corners to facilitate the lifting of them out of the collars. Pipe direction is optional.


Edge sealing also possible.

Specifications

Name: Measurements Qty. per pallet (EUR-measurement)
Interlayer whole pallet 1200×800 mm 335 pcs./pallet
Interlayer 1/2 pallet 800×600 mm 670 pcs./pallet
Interlayer whole pallet with frame 1140×740 mm 335 pcs./pallet
Interlayer 1/2 pallet with frame 740×540 mm 670 pcs./pallet
Interlayer V-Emb L-pallet with frame 1160×760 mm 335 pcs./pallet
Interlayer V-Emb K-pallet with frame 760×560 mm 670 pcs./pallet
Interlayer with different size: Max: 4000x1280mm

Min: No limitations

335 pcs./pallet
Delivery: 1,2 m high stackable pallet
Packaging: Pallet, corner protection, top sheets and stretch wrap
Print: Tampo, Screen, Flexo
Segment: Automotive and engineering  Construction Medical Foods
Options: Sealed edges



Wellplast AB

Turistgatan 2
SE-265 39 Åstorp
Telefon: +46 431 431 444
Fax: +46 431 431 555
info@wellplast.se or use the form

Use the form and we will come back to you soon.

1 + 4 = ?

Grids / Raster

Grids / Raster

Wellplast® Grids

Grids are used to separate products from each other during tansportation and at the same time to have a simple pack-procedure. Our interior fitments have a high stackable strength and are water-resistable. It gives possibility to pack clean and pack in clean environment. The grids are designed to fit the product. Outer measurement is adjusted to outer package that can be either a pallet or smaller boxes. Grids are to be assembled manually. We can also offer assembling.

Specifications Grids (Fefco 0934)

Specifications Grids
Box interior fitments Max.: LxWxH: 1670x1670x1200 mm
Min.: No limitations
Packaging: Pallet, corner protection, top sheets and stretch wrap
Print: Tampo, Screen, Flexo
Segments: Automotive and engineering  Construction Medical Foods
Note: Can be delivered assembled and folded

Materials



Wellplast AB

Turistgatan 2
SE-265 39 Åstorp
Telefon: +46 431 431 444
Fax: +46 431 431 555
info@wellplast.se or use the form

Use the form and we will come back to you soon.

0 + 5 = ?

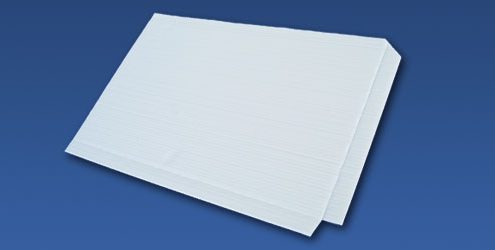

Interlayer for cone shaped boxes

Interlayer for cone shaped boxes

Wellplast® Interlayer for cone shaped boxes

Stiff interlayers in cone shaped boxes is often a problem. The upper layers have a tendency to move around. To solve the problem two foldable sides have been added to the interlayer. This makes it fixed on all heights.

Specifications

Specifications: Interlayer for cone shaped boxes
Interlayer Blue box V-EMB 750:
Interlayer Blue box V-EMB 780:
Delivery: 1,2 m high stackable pallet
Packaging: Pallet, corner protection, top sheets and stretch wrap
Folding: No folding
Print: Tampo, Screen, Flexo
Segment: Automotive and engineering  Construction Medical Foods
Note:

Materials



Wellplast AB

Turistgatan 2
SE-265 39 Åstorp
Telefon: +46 431 431 444
Fax: +46 431 431 555
info@wellplast.se or use the form

Use the form and we will come back to you soon.

3 + 2 = ?

Pallet container

Pallet containers

Wellplast® Pallet boxes/containers

Wellplast® pallet boxes consist of pallet lids and pallet collar. Either the pallet collar stands directly on the plastic pallet. Alternatively a pallet tray is used on top of a pallet. The pallet boxes are a very good alternative to pallet frames when you wish to save weight or don’t have a good return flow of the packaging.

Specifications

Name Measurements (LxW) Height
Pallet box whole pallet 1200×800 mm 200 mm to 1280 mm
Pallet box 1/2 pallet 800×600 mm 200 mm to 1280 mm
Pallet box 1/4 pallet 600×400 mm 200 mm to 1280 mm
Pallet box with different size Max: No limitations
Min: No limitations
Delivery volume: Depends on size
Packaging: Pallet, corner protection, top sheets and stretch wrap
Folding: Manually
Print: Tampo, Screen, Flexo
Segments: Automotive and engineering  Construction Medical Foods
Note:

Materials



Wellplast AB

Turistgatan 2
SE-265 39 Åstorp
Telefon: +46 431 431 444
Fax: +46 431 431 555
info@wellplast.se or use the form

Use the form and we will come back to you soon.

0 + 7 = ?

Corner protection – Edge protection

Corner protection – Edge protection

Wellplast® Corner protection – Edge protection

Corner or edge protectors not only gives a good protection. They are also easy to handle, Also for edges that are not 90 degrees. Delivered flat. Wellplast AB always use these protectors for our own deliveries.

Specifications corner and edge protectors

Specification: Corner protection /Edge protection
Standard long: 2000×400 mm
Standard short: 1200×400 mm
Custom size: Max: 4000x1280mm
Packaging: Pallet, corner protection, top sheets och stretch wrap
Print: Tampo, Screen, Flexo
Segments: Automotive and engineering  Construction Medical Foods
Other:

Materials



Wellplast AB

Turistgatan 2
SE-265 39 Åstorp
Telefon: +46 431 431 444
Fax: +46 431 431 555
info@wellplast.se or use the form

Use the form and we will come back to you soon.

2 + 2 = ?

Pallet tray – pallet lid

Pallet lid/tray

Wellplast® Pallet lid and pallet trays

Pallet trays are delivered flat and folded with self-locking short sides. They can be used as trays on a pallet or as a pallet lids. Can also be equiped with a frame to become a pallet box.

Specifications Pallet lid/tray (Fefco 0314)

Specification: Pallet tray (Fefco 0314)
Pallet tray 1/2 pallett: 800x600x100 mm
Pallet tray whole palle low: 1200x800x80 mm
Pallet tray whole pallet high: 1200x800x150 mm
Pallet tray with custom size: Max: 1200x800x150mm Min: No limitations
Packaging: Pallet, corner protection, top sheets and stretch wrap
Folding: Manually self-locking design
Print: Tampo, Screen, Flexo
Segments: Automotive and engineering  Construction Medical Foods
Note:

Materials



Wellplast AB

Turistgatan 2
SE-265 39 Åstorp
Telefon: +46 431 431 444
Fax: +46 431 431 555
info@wellplast.se or use the form

Use the form and we will come back to you soon.

4 + 1 = ?

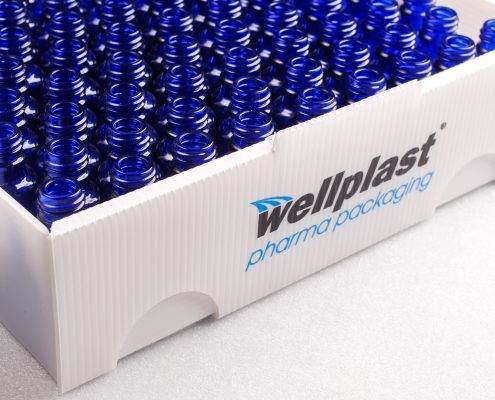

Tray with lid

Tray with lid

Wellplast® Tray with lid

This tray is used for packing bottled liquids, often liquid medicines. Suitable for both manual and automatic packing. The tray cassettes are available in several sizes adjusted to different pallets. They are also available with a telescope function when there is a need for packing the bottles on top of each other.

Specifications

Name Measurements (LxWxH) Bottle height
Casette tray with lid Outer: 395x295x75 mm 70 mm
Casette tray with lid Outer: 365x255x85 mm 80 mm
Casette tray with lid telescope Outer: 390x280x70 mm 63 to 100 mm
Delivery volume: Up to customer
Packaging: Pallet, corner protection, top sheets and stretch wrap
Folding: Self-locking construction, manual or automatic folding
Print: Tampo, Screen, Flexo
Segments: Automotive and engineering  Construction Medical Foods
Note:

Materials



Wellplast AB

Turistgatan 2
SE-265 39 Åstorp
