Wellplast® Flexi SOFT
Wellplast® Flexi SOFT

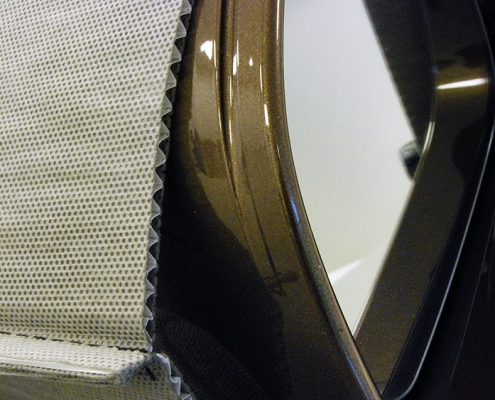

The material Wellplast® Flexi SOFT is produced in sheets. It is developed to be used as packaging material for surface sensitive products. The Wellplast® Flexi SOFT design consists of a corrugated middle layer welded to two outer layers. The material in the middle layer is made of minerals and polypropylene. The outer layers are made from non scratching nonwoven polypropylene. The unique composition makes the material stiff in one direction and flexible in the other. It is durable, has a high tearing strength and can be used many times. When used the material is fully recyclable.
Specifications
| Wellplast® Flexi SOFT | |
| Material centre layer (fluting) | 55 % natural minerals, 45 % polypropylene |
| Material outer layers | Polypropylene Nonwoven 100 g/m2 |
| Thickness | 3,5 mm |
| Maximum size | 4000 x 1200 mm |
| Weight | 430 g/m2 |
| Colour | Grey |
| Printing possibilities | Digital UV, stamp, screen |
| Segments | Automotive and engineering Construction Medical |
Download information
Contact us for more information or samples
Wellplast AB
Turistgatan 2
SE-265 39 Åstorp, Sweden
Phone: +46 431 431 444
Fax: +46 431 431 555
info@wellplast.se or use the form
How can we help you?
Other Wellplast® materials
Wellplast® S – Solid PP boards
Wellplast® S – Solid PP board
Wellplast® S is a solid board made from polypropylene. The board is extremely durable, clean and resistant to chemicals. The sheets are produced through co-extrusion of polypropylene plastics. The material is available in several thicknesses and weights. It is especially suitable for reuse and in return systems.
Specifications
| Wellplast® S – Solid board |
|||||
| Raw material | 100% polypropylene, virgin or regenerated | ||||
| Thickness | 2mm, 3mm, 4mm | ||||
| Maximum size | 4000 x 1200 mm | ||||
| Weight | 1600 g/m2 – 3600 g/m2 | ||||
| Colour | White and grey are standard colours | ||||
| Food contact | Approved (not recycled material) | ||||
| Printing possibilities | Flexo, screen, digital, corona treated for print | ||||
| Options | UV-protection, ESD protection, flame retardant | ||||
| Segments: | Automotive and engineering Construction Medical Foods | ||||
| Other: | Can be produced in rolls | ||||
Contact us for more information or samples
Wellplast AB
Turistgatan 2
SE-265 39 Åstorp, Sweden
Phone: +46 431 431 444
Fax: +46 431 431 555
info@wellplast.se or use the form
How can we help you?
Other Wellplast® materials
Wellplast® ESD Protect
Wellplast® ESD Protect
Antistatic – Conductive – Dissipative

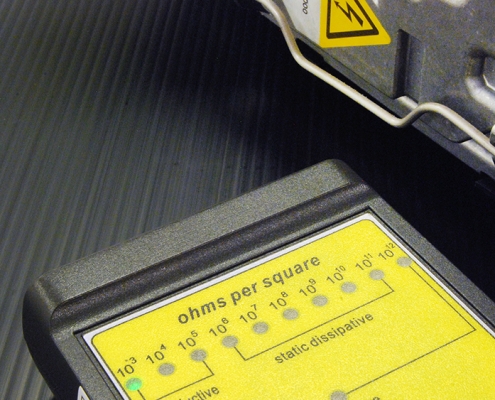

To be able to pack electronics or other products sensitive to static electricity Wellplast AB offers the material Wellplast® ESD Protect. We manufacture three types of ESD protected material, conductive plastics, antistatic plastics and dissipative plastics for minimizing or eliminating damaging static discharge. From these materials different types of packaging can be produced. Custom designed boxes, interlayers and interior fitments. When used the material is fully recyclable.
Specifications
| Wellplast®ESD Protect – Anti static – Conductive – Dissipative | |||||
| Raw material | Polypropylene + ESD additive | ||||
| Thickness | 2-10 mm | ||||
| Maximum size | 6000 x 2000 mm | ||||
| Weight | 250 g/m2 -3000 g/m2 | ||||
| Colour | Black | ||||
| Resistivity conductive | 103 -104 ohmm | ||||
| Resistivity dissipative | 106 – 108 ohmm | ||||
| Resistivity anti static | 109 -1011 ohmm | ||||
| Printing possibilities | Flexo, screen, digital/UV | ||||
| Segments: | Automotive and engineering Construction Medical | ||||
Download information
Contact us for more information or samples
Wellplast AB
Turistgatan 2
SE-265 39 Åstorp, Sweden
Phone: +46 431 431 444
Fax: +46 431 431 555
info@wellplast.se or use the form
How can we help you?
Other Wellplast® materials
Wellplast® Foam
Wellplast® Foam
Wellplast® Foam is used for products that are extremely sensitive to shocks and scratches or when high friction is required. It is produced in such a way that a PE foam in optional thickness is laminated onto a Wellplast® board on one or two sides.
Specifications
| Specification | Wellplast® foam | |||
| Raw material core | Polypropylene | |||
| Material Foam | Expanded polyethylene | |||
| Thickness Wellplast® | 2-5 mm | |||
| Thickness foam | From 1 mm | |||
| Lamination | Double or single sided | |||
| Maximum size | 4000 x 1200 mm | |||
| Weight | 600g/m2 – 1700g/m2 | |||
| Colour Wellplast® | White as standard | |||
| Colour foam | White as standard | |||
| Other | Can be delivered with acut edges or with an overhang | |||
| Printing possibilities | Flexo, screen, digital/UV | |||
| Segments: | Automotive and engineering Construction Medical Foods | |||
Contact us for more information or samples
Wellplast AB
Turistgatan 2
SE-265 39 Åstorp, Sweden
Phone: +46 431 431 444
Fax: +46 431 431 555
info@wellplast.se or use the form
How can we help you?
Other Wellplast® materials
Wellplast® Print Grade
Wellplast® Print Grade

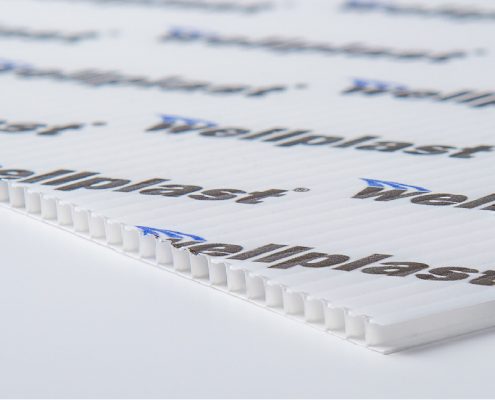

Wellplast® Print Grade – corrugated plastic for print is specially developed for optimized print quality. Wellplast® Print Grade is corona treated and is well suited for digital printing, screen printing and flexo printing. An unbeatable material to use outdoors as it is completely moisture resistant. The durability is long and the material is 100% recyclable. The boards are manufactured in several thicknesses and surface weights, and Wellplast® Print Grade is light, stiff and durable. For optimal results, the material can be easily cut and post-processed after printing. The material can be ordered in standard sizes or with optional dimensions. Polypropylene (PP) is very effective at recycling materials. In the event of combustion, only carbon dioxide and water are formed.
Environmentally efficient
Light weight means less transport costs
100% recyclable
Needs less ink
Long durability
Specifications
| Wellplast® Print grade – Corrugated plastic | |
| Standard sizes | 3050x2050x5mm 3200*1025*5mm 3200×1600*3,5mm |
| Custom sizes | Max: 6000x2500mm Thickness: 2mm – 10mm |
| Colour | White as standard |
| Options | Flame retardant, UV-protection |
| Printing methods | Digital print, screen, UV, flexo, tampo |
| Other | Always corona-treated |
Contact us for more information or samples
Wellplast AB
Turistgatan 2
SE-265 39 Åstorp, Sweden
Phone: +46 431 431 444
Fax: +46 431 431 555
info@wellplast.se or use the form
How can we help you?
Other Wellplast® materials
Wellplast®– Corrugated plastic
Wellplast® – Corrugated plastic
Corrugated plastic for packaging such as for example, interlayers, boxes, trays and interior fitments. Wellplast® is the trademark for our high quality corrugated plastic material. It is produced in sheets by extrusion from 100% PP-plastic (virgin or regenerated). It is produced in many thicknesses between 2 and 10mm. It is very light weight and very durable, why it is specifically suitable for return systems. White is our standard colour, but it can be produced in other colours. Additives can be added to achieve other characteristics (see in table below). Except from corrugated plastic common names are twin wall sheets and fluted plastic sheets. All our materials are 100% recyclable.
Specifications
| Raw material | 100% polypropylene, virgin or recycled |
| Thickness | 2-10mm Standard: 2mm 3mm 3,5mm 4mm 5mm 8mm, 10mm |
| Maximum sheet size | 6000 x 2400 mm |
| Weight | 250 g/m2 -3000 g/m2 |
| Colour | White (standard) alla colours possible, recycled material is black or grey |
| Food contact | Approved for Direct food Contact (not recycled material) |
| Printing possibilities | Flexo, screen, digital, UV |
| Options | UV-protection, ESD-protection, flame retardant, bio-degradeble |
| Segment: | Automotive and engineering Construction Medical Foods |
| Other: | Can be produced as rolls |
Download information
Contact us for more information or samples
Wellplast AB
Turistgatan 2
SE-265 39 Åstorp, Sweden
Phone: +46 431 431 444
Fax: +46 431 431 555
info@wellplast.se or use the form
How can we help you?
Other Wellplast® materials
Examples of packaging that can be made from Wellplast®
Wellplast® SOFT
Wellplast® SOFT
Wellplast® SOFT is a product that is used for packing scratch-sensitive products such as for example laquered and sensitive plastic products. The textile surface is laminated without glue. The material is stiff and can be used for interlayers, dividers, inserts and boxes. It is produced in several different thicknesses.
Specifications
| Wellplast® SOFT | |
| Raw material core | 100 % Polypropen (recycled, grey as standard) |
| Material outer layers | Polypropylene Nonwoven |
| Thickness | 2-5mm Standard 2 mm 2,5mm 3,5mm |
| Maximum size | 4000 x 1600 mm |
| Weight | 280 – 1500g/m2 |
| Colour | Grey or blue |
| Printing possibilities | Digital, UV, stamp, Flexo, Screen |
| Segments: | Automotive and engineering Construction Medical Foods |
Download information
Contact us for more information or samples
Wellplast AB
Turistgatan 2
SE-265 39 Åstorp, Sweden
Phone: +46 431 431 444
Fax: +46 431 431 555
info@wellplast.se or use the form
How can we help you?
Other Wellplast® materials
WCI®- Corrosion protection
WCI® – Wellplast® Corrosion Inhibitor
What is WCI® and how does it work?

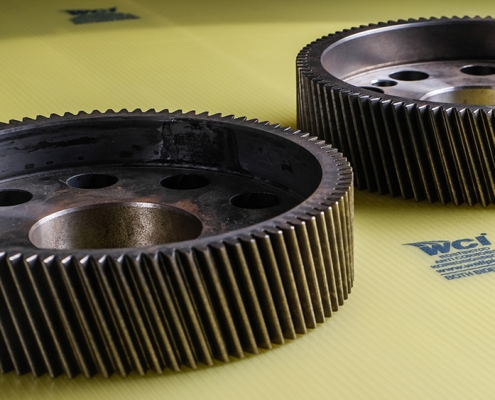

With the material WCI®, an abbreviation of Wellplast® Corrosion Inhibitor, Wellplast AB can offer a unique solution where the box, interlayer or the interior actively protect all metals from corrosion. WCI® consists of Wellplast® corrugated plastic with an added corrosion protection. Technically we have managed to bind the anti corrosive substance VCI in the polypropen plastic which Wellplast® partly consists of.
Advantages
-Effective corrosion protection
-Simple and quick packing
-Avoid greasing and washing
-Keep the details clean during transport and storage
-Adjusted for automatization and robot packing
Nowadays metallic details don’t need to be greased before storage and transport. This also means that they don’t need to be washed before assembly. WCI® keeps the products clean at the same time as it keeps the parts corrosion free. It is also an effective alternative to the corrosion protective paper and bags as it accelerates the unpacking. WCI® is usually used at automatization of the packing process. WCI® packages facilitate the packing of robot details (parts).
What is VCI?
VCI is an abbreviation of Volatile Corrosion Inhibitor. It is a substance which in very very small concentrations actively inhibits, prevents or completely stops the processes that create rust or corrosion damages. What inhibits the rust/corrosion is a steam phase which effectively prevents the atmospheric corrosion arising in environments with high humidity of the air, high contents of salt or where the pH value deviates from the normal.
How does VCI work?
VCI consists of organic substances which very slowly are vaporized and a thin film on all metal surfaces is formed – on the outside as well as on the inside. This protective film, which only is some few my thick, prevents the interaction that would arise between the oxygen in the air and the atmospheric humidity on the metal surface. From the time when the product has been packed it normally takes 24 hours before the VCI vapors have spread and created balance. VCI works for up to two years and is self-healing, i.e. the packed product shall be checked and if you therefore open the packaging, the VCI continues to protect the product after it has been packed again. If extra VCI products complete the packaging and/or a hermetic outer packaging is added, extreme protection times can be obtained. VCI is multi-protective and protects ALL types of metals, alloys and treated surfaces.
Specifications
| Specifications | WCI® | WCI® Permanent | ||||
| Raw material | Polypropylene, anti corrosion additive | Polypropylene, anti corrosion additive | ||||
| Thickness | 2 – 5 mm, 3 mm och 3,5 mm as standard | 2 – 5 mm, 3 mm och 3,5 mm as standard | ||||
| Maximum size | 4000 x 1600 mm | 4000 x 1600 mm | ||||
| Weight | 250 – 1500 g/m2 | 250 – 1500 g/m2 | ||||
| Colour | Yellow (semi transparent) | Yellow | ||||
| Use | One-time | Suitable for multiple uses | ||||
| Printing possibilities | Digital, UV, stamp, screen, flexo | Digital, UV, stamp, screen, flexo | ||||
| Segment: | Automotive and engineering Construction | |||||
Download information
Contact us for more information or samples
Wellplast AB
Turistgatan 2
SE-265 39 Åstorp, Sweden
Phone: +46 431 431 444
Fax: +46 431 431 555
info@wellplast.se or use the form
